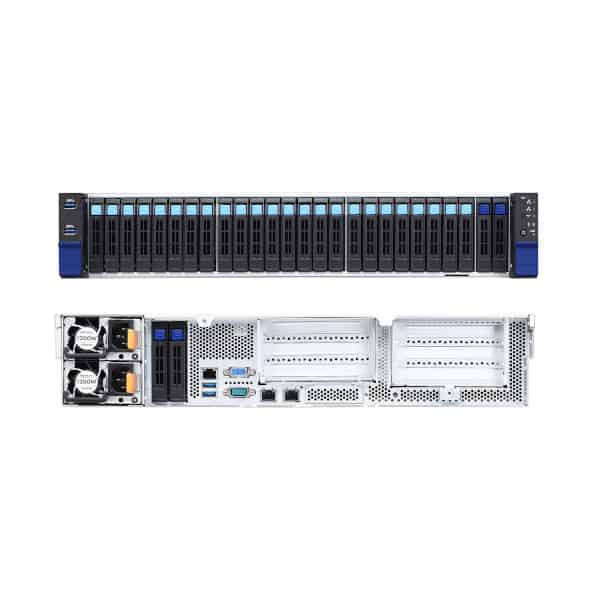

STOREMATRIX® U24F - 24 NVMe U.2 FLASH Storage
- 24 NVMe PCIe U.2 SSD FLASH
- OpenZFS, Linux or Windows Storage Server
- 1 AMD EPYC 8 to 64 Cores
- RAM up to 2TB, 16 slots
- 10/25/100/200Gb/s LAN or Infiniband
- 2U Rackmount
About
STOREMATRIX® DATA STORAGE SYSTEMS are Commercial off-the-shelf (COTS) data storage system.
Efficient, economical, reliable, expandable and customizable hardware and software to meet your Data Storage requirements.
Specification
Specifications
Main Storage Capacity
24 U.2 NVME PCIE SSD FLASH
Operating System
Pre-installed OpenZFS, Linux or Windows Storage Server in RAID 1
CPU
Single AMD EPYC Rome 8 to 64 Cores
System Memory
16 DIMM Slot, up to 4TB
Network
Default (2) GbE ports + (1) GbE dedicated for IPMI. Optional NVIDIA Mellanox 10/25/100/200G Ethernet and Infiniband.
Expansion
2 x PCI-E Gen4 x8 slots (HH / HL) and 4 x PCI-E Gen4 x8 slots (FH / HL)
PSU
1200W (1+1) 80 Plus Platinum Hotpluggable
Dimension
2U Rackmount, 19" rack, Depth 650mm
Weight
20 KG
Operating Temp.
10° C ~ 35° C (50° F~ 95° F)
