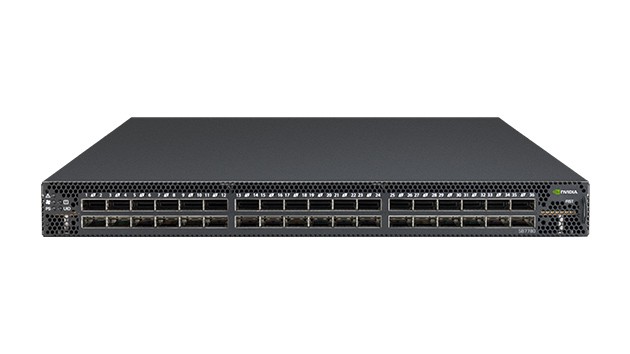

SB7780/7880 InfiniBand Series

SKU MSB7880-ES2R Categories , Brand:

Key Features

Standard Switches

  • 36x EDR 100Gb/s ports in a 1U switch
  • Up to 7.2Tb/s aggregate switch throughput
  • Ultra-low latency between InfiniBand subnets
  • InfiniBand Trade Association (IBTA) specification 1.3 and 1.2.1 compliant
  • Quality-of-service enforcement
  • 1+1 power supply

Managed Switches

  • Integ rated subnet manager agent (up to 2k nodes)
  • Quick and easy setup and management
  • Intuitive CLI
  • Can be enhanced with Mellanox’s Unified Fabric Manager (UFM®)
  • Temperature sensors and voltage monitors
  • Fan speed controlled by management software

Benefits

  • Industry-leading switch platform in performance, power, and density
  • Designed for next level of scale and resiliency
  • Designed for energy and cost savings
  • Quick and easy setup and management
  • Flexible port allocation to support up to six different InfiniBand subnets
Request a Quote

About

The unprecedented growth of the global HPC market coupled with the insatiable demands of Exascale ecosystems around the world, have caused a rapid increase in the number of connected servers. The NVIDIA Mellanox SB7780/SB7880 InfiniBand Routers allow scaling up to an unlimited number of nodes, while sustaining the data processing demands of machine learning, IoT, HPC and cloud applications.

Specification

Specifications
Link Speed
100Gb/s
Switch ASIC
Switch IB-2
Ports
36
Height
1U
Switching Capacity
7.2Tb/s
Cooling System
Air cooled
Interface
QSFP28
Number of PSUs
2
Management
Inband/Outband
