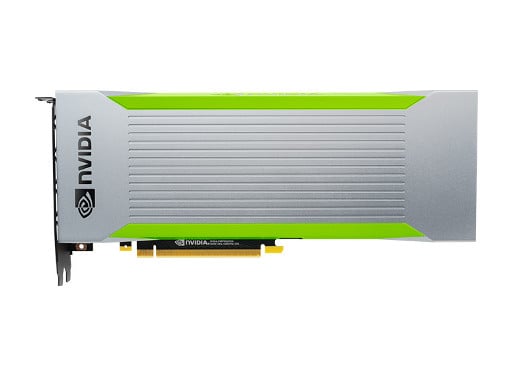

NVIDIA QUADRO RTX6000 PASSIVE

  • Turing GPU
  • 4,608 NVIDIA® CUDA® Cores
  • 576 NVIDIA® Tensor Cores
  • 72 NVIDIA® RT Cores
  • 24GB GDDR6 Memory
  • Up to 624GB/s Memory Bandwidth
  • 80T RTX-OPS
  • 10 Giga Rays/s Rays Cast
  • 14.9 TFLOPS FP32 Performance
  • 29.9 TFLOPS FP16 Performance
  • 238.9 TOPS INT8 Performance
  • 119.4 TFLOPS of Tensor Operation
  • Max. Power Consumption: 250W
  • Thermal Solution: Passive Heatsink
  • Support Quadro vDWS
  • Max. Virtual Display Head Resolution: 4096 x 2160

About

THE POWER OF RTX IN THE DATA CENTER

The demand for visualization, rendering, data science and simulation continues to grow as businesses tackle larger, more complex workloads than ever before. However, enterprises looking to scale up their visual compute infrastructure face mounting budget constraints and deployment requirements.

Meet your visual computing challenges with the power of NVIDIA Quadro RTX™ GPUs and NVIDIA virtual GPU software in the data center. Built on the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, the Quadro RTX 6000 Passive feature RT Cores and multi-precision Tensor Cores for real-time ray tracing, AI, and advanced graphics capabilities. Tackle graphics-intensive mixed workloads, complex designs, photorealistic renders, and augmented and virtual environments at the edge with NVIDIA Quadro RTX™, designed for enterprise data centers.

Specification

Specifications
GPU Architecture
Turing
CUDA Parallel Processing cores
4608
NVIDIA Tensor Cores
576
NVIDIA RT Cores
72
Frame Buffer Memory
24 GB GDDR6
RTX-OPS
80T
Rays Cast
10 Giga Rays/Sec
Peak Single Precision (FP32) Performance
14.9 TFLOPS
Peak Half Precision (FP16) Performance
29.9 TFLOPS
Peak Integer Operation (INT8) Performance
238.9 TOPS
Deep Learning TeraFLOPS
119.4 Tensor TFLOPS
Memory Interface
384-bit
Memory Bandwidth
624 GB/s
Max Power Consumption
250 W
