- 36x EDR 100Gb/s ports in a 1U switch
- Up to 7.2Tb/s aggregate switch throughput
- Ultra-low latency between InfiniBand subnets
- InfiniBand Trade Association (IBTA) specification 1.3 and 1.2.1 compliant
- Quality-of-service enforcement
- 1+1 power supply

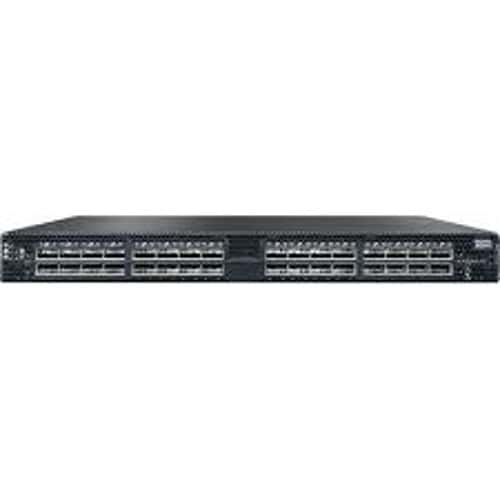

NVIDIA Spectrum SN3700C
- Total ports: 32-port 100GbE
- Throughput: 3.2Tb/s
- Packet Per Second: 4.76Bpps
- CPU: Dual-core x86
About
SN3700C is a 1U 32-port 100GbE spine that can also be used as a high density 10/25GbE leaf when used with splitter cables. SN3700C allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios. SN3700C ports are fully splittable to up to 128 x 10/25GbE ports
Specification
Specifications
Connectors
32 QSFP28 100GbE
Max. 100GbE Ports
32
Max. 50GbE Ports
64
Max. 40GbE Ports
32
Max. 25GbE Ports
128
Max. 10GbE Ports
128
Max. 1GbE Ports
128
Throughput
3.2Tb/s
Packet Per Second
4.76Bpps
CPU
Dual-core x86
System Memory
8GB
SSD Memory
32GB
Packet Buffer
42MB
100/1000Mb/s Management Port
1
Serial Ports
1 RJ45
USB Ports
1
Hot-Swap Power Supplies
2 (1+1 redundant)
