- 36x EDR 100Gb/s ports in a 1U switch
- Up to 7.2Tb/s aggregate switch throughput
- Ultra-low latency between InfiniBand subnets
- InfiniBand Trade Association (IBTA) specification 1.3 and 1.2.1 compliant
- Quality-of-service enforcement
- 1+1 power supply

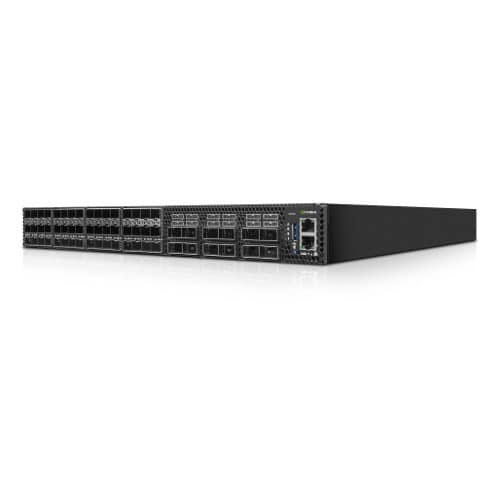

NVIDIA Spectrum SN3420
- Total ports: 48-port 25GbE
- Throughput: 2.4Tb/s
- Packet Per Second: 3.58Bpps
- CPU: Dual-core x86
About
As data-center switching architectures increasingly adopt 100GbE, the SN3420
offers a high-performance, cost-effective way to evolve host connectivity from
10G to 25G. Equipped with 48 ports of 10/25GbE and 12 ports of up to 100GbE in
a compact 1U form factor. The SN3420 is an ideal ToR switch platform, delivering
a total throughput of up to 2.4 Tb/s with a processing capacity of 3.58 Bpps. The
SN3420 enables the seamless use of QSFP28 connections for leaf-spine topology
and future-proofing the data center.
Specification
Specifications
Connectors
48 SFP28 25GbE +
12 QSFP28 100GbE
Max. 100GbE Ports
12
Max. 50GbE Ports
24
Max. 40GbE Ports
12
Max. 25GbE Ports
48+48
Max. 10GbE Ports
48+48
Max. 1GbE Ports
48+48
Throughput
2.4Tb/s
Packet Per Second
3.58Bpps
CPU
Dual-core x86
System Memory
8GB
SSD Memory
32GB
Packet Buffer
42MB
100/1000Mb/s Management Port
1
Serial Ports
1 RJ45
USB Ports
1
Hot-Swap Power Supplies
2 (1+1 redundant)
