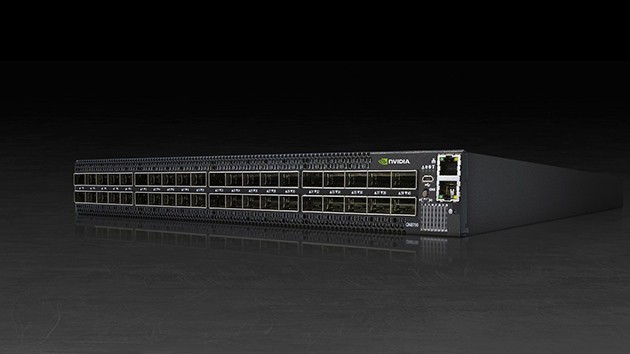

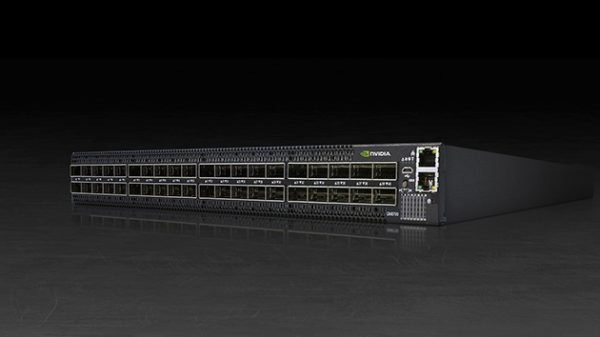

NVIDIA QUANTUM QM8700 SERIES
About
NVIDIA Quantum InfiniBand switches provide high-bandwidth performance, low power, and scalability, reducing capital and operating expenses and providing the best return on investment. NVIDIA Quantum switches optimize data center connectivity with advanced routing and congestion avoidance capabilities
Specification
Specifications
Performance
200Gb/s per port
Switch radix
40 non-blocking ports with
aggregate data throughput
up to 16Tb/s
Connectors and cabling
Quad small form-factor
pluggable (QSFP56)
connectors; passive or
active copper or active fiber
cable; optical module
Power supply
1+1 redundant and hot-
swappable power
Input range: 100-127VAC,
200-240VAC
80 Gold+ and ENERGY STAR
certified power supplies
Management ports
1x RJ45
1x console port: RS232
1x micro USB
CPU
Broadwell ComEx D-1508
2.2GHZ
System memory
Single 8GB
Software
MLNX-OS
System weight
1 PSU: 11.4kg
2 PSUs: 12.48kg
System dimensions
Height: 1.7 in (43.6 mm)
Width: 17 in (433.2 mm)
Depth: 23.2 in (590.6 mm)
Rack mount
1U rack mount
Operating Conditions
Temperature:
> Operating: 0ºC-40ºC
> Non-operating: -40ºC-70ºC
Humidity:
> Operating: 10%-85% non-
condensing
> Non-operating: 10%-90%
non-condensing
Altitude: up to 3,200m
EMC (emissions)
CE, FCC, VCCI, ICES, and RCM
Safety
RoHS Compliant
Warranty
1 year
