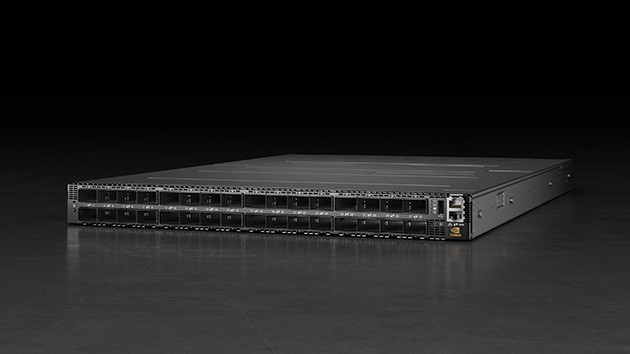

NVIDIA Quantum-2 QM9700 Series

SKU MQM9700-NS2F Categories , Brand:

Request a Quote

About

NVIDIA Quantum-2 InfiniBand switches deliver massive throughput, In-Network Computing, smart acceleration engines, flexibility, and a robust architecture to achieve unmatched performance in high-performance computing (HPC), AI, and hyperscale cloud infrastructures—with less cost and complexity.

Specification

Specifications
Performance
400Gb/s per port
Switch radix
64 400Gb/s non-blocking ports with aggregate data throughput up to 51.2Tb/s
Connectors and cabling
32 octal small form- factor pluggable (OSFP) connectors; passive or active copper or active fiber cable; optical module
Power supply
1+1 redundant and hot-swappable power Input range: 200-240Vac; US min: 2 phases of 100-110v—in total, at least 208v 80 Gold+ and ENERGY STAR certified
Cooling
Front-to-rear or rear-to-front Cooling option: 6+1 hot- swappable fan unit
Management ports
1x USB 3.0 x1 1x USB for I2C channel 1x RJ45 1x RJ45 (UART)
CPU
x86 Coffee Lake i3
System memory
Single 8GB, 2,666 mega transfers per second (MT/s), DDR4 SO-DIMM
Storage
M.2 SSD SATA 16GB 2242 FF
Software
MLNX-OS
System weight
14.5kg
System dimensions
Height: 1.7 in (43.6 mm) Width: 17.0 in (438 mm) Depth: 26.0 in (660.4 mm)
Rack mount
1U rack mount
Environmental conditions
Temperature: > Operational: Forward air flow: 0° to 35°C Reverse air flow: 0° to 40°C > Non-Operational: -40° to 70°C Humidity: > operating 10% to 85% non-condensing > non-operating 10% to 90% non-condensing Altitude: Up to 3050m
EMC (emissions)
CE, FCC, VCCI, ICES, and RCM
Product safety compliant/ certified
RoHS, CB, cTUVus, CE, and CU
Warranty
1 year
