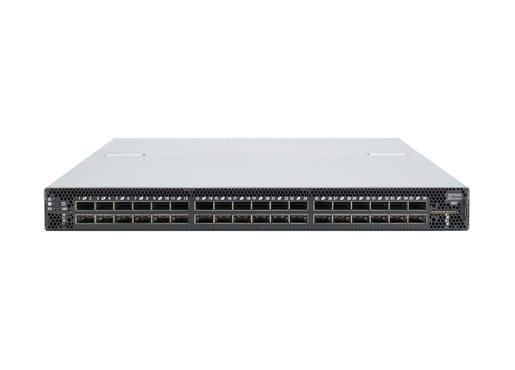

MELLANOX SB7890 InfiniBand EDR 100Gb/s Switch System

  • Total ports: 36 X EDR 100Gb/s ports in a 1U switch
  • Aggregate switch throughput: 7.2 Tb/s
  • Switch latency: 90ns
  • Power Consumption: 122W

About

Mellanox provides the world’s first smart switch, enabling in-network computing through Scalable Hierarchical Aggregation Protocol (SHARP) technology. The SB7800 series has the highest fabric performance available in the market with up to 7.2Tb/s of non-blocking bandwidth with 90ns port-to-port latency.

Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High- Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox’s next generation of EDR InfiniBand high-speed smart switches.

Specification

Specifications
Network
36-port non-blocking EDR 100Gb/s
Bandwidth
7.2Tb/s
Port-to-port latency
90ns
System Weight
11kg
System Dimensions
1U rackmount
685 X 428 X 44mm
Power Consumption
136W
Management Port
10/100/1000Mb/s ethernet ports
