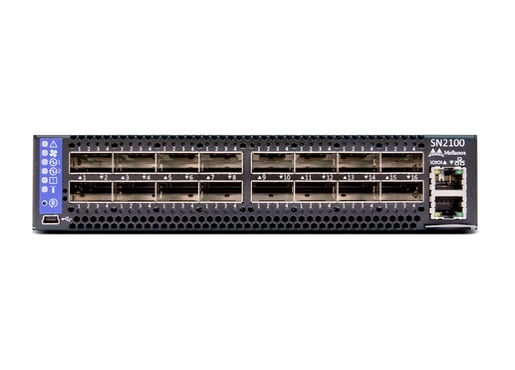

MELLANOX MSN2100-CB2F

  • 16-port 100GbE
  • Zero Packet Loss
  • Easy Scale from one to thousands of nodes and switches
  • Line rate performance on all ports at all packet sizes
  • Software Defined Networking (SDN) support
  • Easy maintenance
  • Easy deployment
  • Unprecedented performance

About

The SN2100 switch provides a high density, side-by-side 100GbE switching solution which scales up to 128 ports in 1RU for the growing demands of today’s database, storage, data centers environments.

The SN2100 switch is an ideal spine and top of rack (ToR) solution, allowing maximum flexibility, with
port speeds spanning from 10Gb/s to 100Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.

Powered by the Mellanox Spectrum®ASIC and packed with 16 ports running at 100GbE, the SN2100
carries a whopping throughput of 3.2Tb/s with a landmark 2.38Bpps processing capacity in a compact
1RU form factor.

Specification

Specifications
Network
16-port non-blocking 100GbE
Bandwidth
3.2Tb/s
System Weight
4.5kg
System Dimensions
1U rackmount
200 X 508 X 44mm
Power Consumption
94.3W
Management Port
10/100/1000Mb/s ethernet ports
