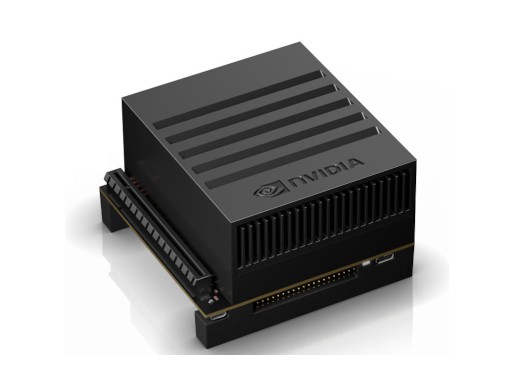

NVIDIA JETSON™ AGX XAVIER DEVELOPER KIT

Features
  • PCIe x16 PCIe Gen4 x8 / SLVS-EC x8
  • RJ45 Gigabit Ethernet
  • USB-C (2x) USB 3.1 | DisplayPort, Power Delivery
  • eSATAp + USB 3.0 SATA (Power + Data for 2.5” SATA) + USB 3.0
  • Micro USB (1x) USB 2.0
  • Camera Header (16x) CSI-2 lanes
  • M.2 Key M NVMe storage
  • M.2 Key E PCIe x1 (for Wi-Fi / LTE / 5G)
  • 40-pin Header UART, SPI, CAN, I2C, I2C, DMIC, GPIOs
  • HD Audio Header High-Definition Audio
  • HDMI Type A HDMI 2.0, eDP 1.2a, DP 1.4
  • uSD / UFS Card SD / UFS
  • DC Barrel Jack 9V – 20VDC
  • Size 105mm x 105mm

About

With the NVIDIA Jetson AGX Xavier developer kit, you can easily create and deploy end-to-end AI robotics applications for manufacturing, delivery, retail, agriculture, and more.

Supported by NVIDIA JetPack and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT software libraries, the kit provides all the tools you need to get started right away. And because it’s powered by the new NVIDIA Xavier processor, you now have more than 20X the performance and 10X the energy efficiency of its predecessor, the NVIDIA Jetson TX2.

Get started today with the Jetson AGX Xavier Developer Kit.

Specification

Specifications
GPU
512-core Volta GPU with Tensor Cores
CPU
8-core ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3
Memory
32GB 256-Bit LPDDR4x | 137GB/s
Storage
32GB eMMC 5.1
DL Accelerator
(2x) NVDLA Engines
Vision Accelerator
7-way VLIW Vision Processor
Encoder/Decoder
(2x) 4Kp60 | HEVC/(2x) 4Kp60 | 12-Bit Support
Size
105 mm x 105 mm x 65 mm
Deployment
Module (Jetson AGX Xavier)
